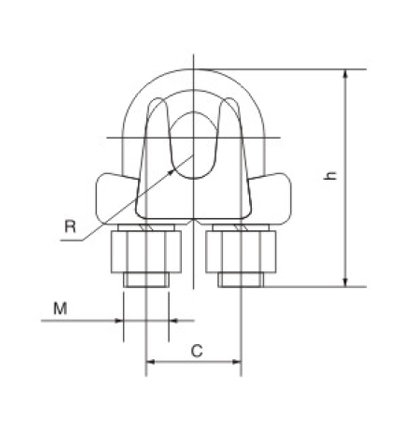

BPFC028 Spec

The BPFC028 Series clip comes either with forged steel or malleable iron base. It is the most economical way of securing down guy and a clamping pace to clamp ground wire to ground rod.

      •   Hot-dip galvanized steel or stainless steel.

      •   Low cost and high strong

      •   High product size consistency

      •   Suitable for various wire diameters

      •   Various sizes available

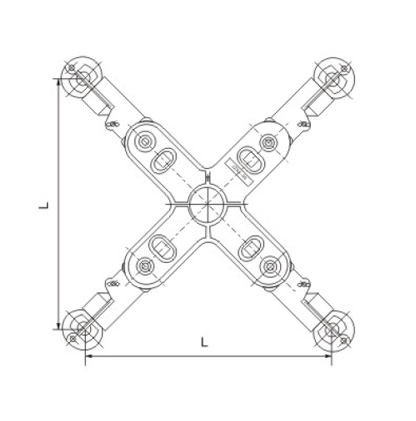

BPFC029 Spec

The BPFC029 Series is a kind of spacer damper, it is mainly used to limit the relative motion between the conductors and to maintain the geometry of the splitting conductors under normal operation. For long distances, large-capacity UHV transmission lines use two, four or more splitting per phase conductor.

      •   The body and keepers are aluminium alloy

      •   The other parts are hot-dip galvanized steel

      •   Various sizes available

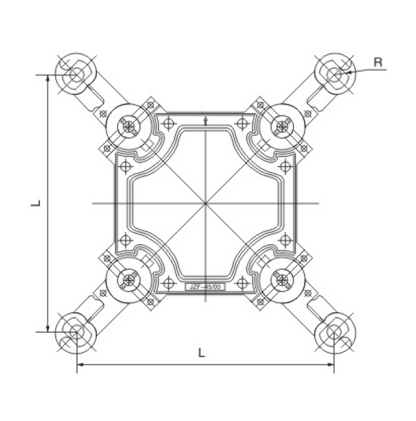

BPFC030 Spec

The BPFC030 Series is a kind of spacer damper, it is mainly used to limit the relative motion between the conductors and to maintain the geometry of the splitting conductors under normal operation. For long distances, large-capacity UHV transmission lines use two, four or more splitting per phase conductor.

      •   The body and keepers are aluminium alloy

      •   The other parts are hot-dip galvanized steel

      •   Various sizes available

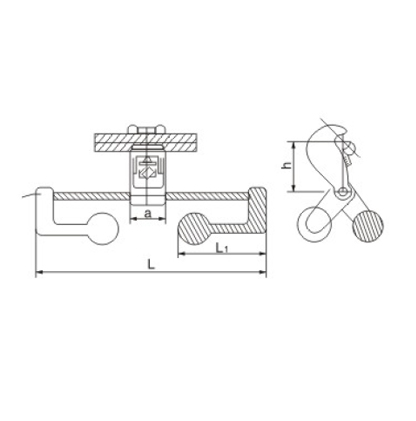

BPFC031 Spec

The BPFC031 Series is a kind of damper, it is suitable for use on all conductor and earth wire constructions including ACSR, AAC, AAAC ,AACSR (Aluminium alloy conductor steel reinforced). A dreaded phenomenon in overhead transmission lines is the occurrence of high-frequency, short-wave vibrations in conductors, shield wires and aerial telecommunication cables due to natural wind flow.

      •   The clamp is aluminum alloy

      •   Applicable to different cable size
