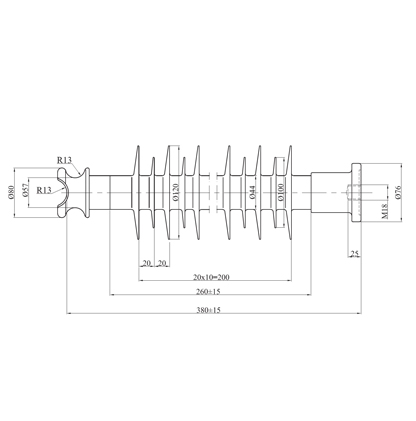

BFPS13812 Spec
The BFPS13812 Series polymer insulator was subjected to a series of tests under different conditions, including pollution, wetting rate, non-soluble deposit density, and non-uniform distribution pollution.
• Technical datum meet IEC6952
• Max voltage for insulator 24kV
• Specified cantilevel load 12kN
• Min creepage distance 600mm
• Lighting impulse withstand voltage 130kV
• The color of the silicone rubber: Red、Gray
DOWNLOAD DATASHEET

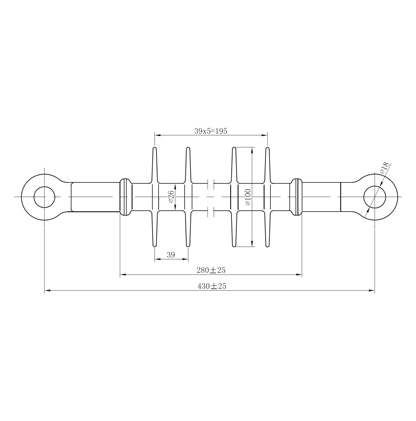

BDPI13870 Spec
The BDPI13870 Series polymer insulator was subjected to a series of tests under different conditions, including pollution, wetting rate, non-soluble deposit density, and non-uniform distribution pollution.
• Technical datum meet IEC61109、ANSI C29.13
• Max voltage for insulator 24kV
• Specified cantilevel load 70kN
• Min creepage distance 600mm
• Lighting impulse withstand voltage 150kV
• The color of the silicone rubber: Red、Gray
DOWNLOAD DATASHEET

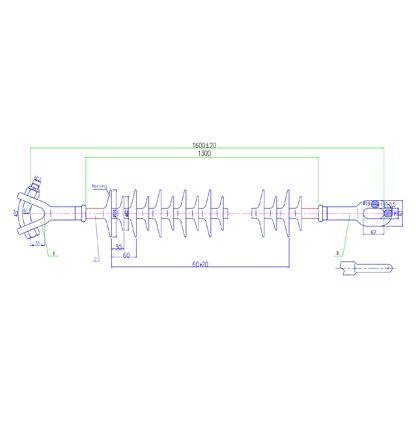

BFXBW115111 Spec
The BFXBW115111 Series polymer insulator was subjected to a series of tests under different conditions, including pollution, wetting rate, non-soluble deposit density, and non-uniform distribution pollution.
• Technical datum meet IEC61109
• Min thickness of housing 4mm
• Specified cantilevel load 111kN
• Min creepage distance 3520mm
• Critical impulse flare +780kV、-760kV
• The color of the silicone rubber: Red、Gray
DOWNLOAD DATASHEET

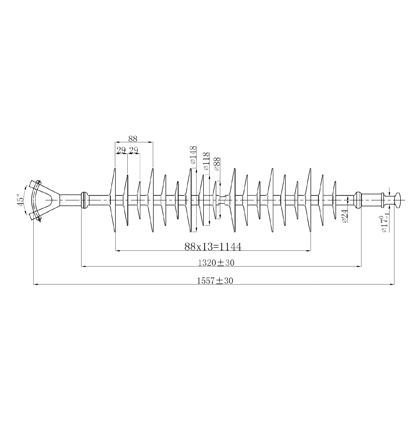

BFXBW138120 Spec
The BFXBW138120 Series polymer insulator was subjected to a series of tests under different conditions, including pollution, wetting rate, non-soluble deposit density, and non-uniform distribution pollution.
• Technical datum meet IEC61109
• Max rated voltage 138kV
• Specified cantilevel load 120kN
• Min creepage distance 3505mm
• Critical impulse flare 830kV
• The color of the silicone rubber: Red、Gray
DOWNLOAD DATASHEET
