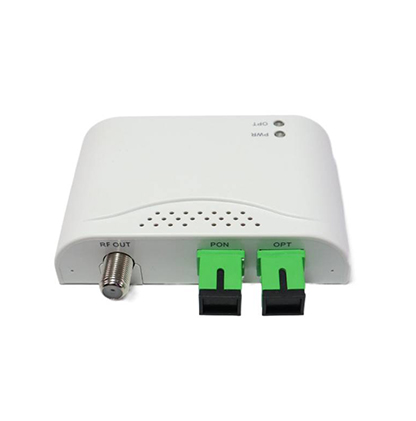

BC21R40 Spec

The BC21R40 series FTTH WDM receiver has the characteristics of high integration, high performance, excellent anti-jamming performance.

      •   Operating wavelength: 1550 nm

      •   PON Pass wavelength: 1310,1490 nm

      •   Optical return loss: ≥45 dB

      •   Bandwidth: 45 - 1006 MHz

      •   Output return Loss: 16 dB(Typical)

      •   Flatness: ±0.75 dB

      •   CTB: ≤ -65 dB

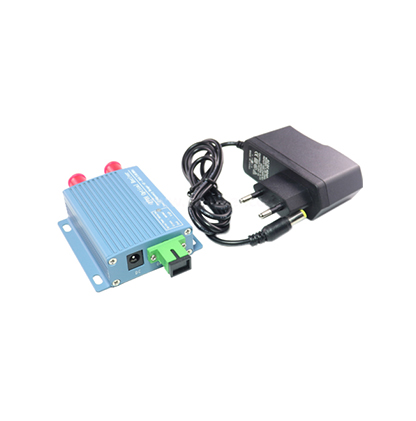

BC21R33 Spec

The BC21R33 series FTTH CATV fiber optical receiver is low power consumption, AGC optical constant level output, small volume and high reliability.

      •   Optical wavelength: 1260-1620 nm

      •   Pass Wavelength: 1310/1490 nm

      •   Optical input range: 0 - -9 dBm(Analog TV)

      •   Optical input range: 0 - -15 dBm(Digital TV)

      •   Output return loss: ≥45 dB

      •   Bandwidth: 47-862 MHz

      •   Flatness: ±0.75 dB

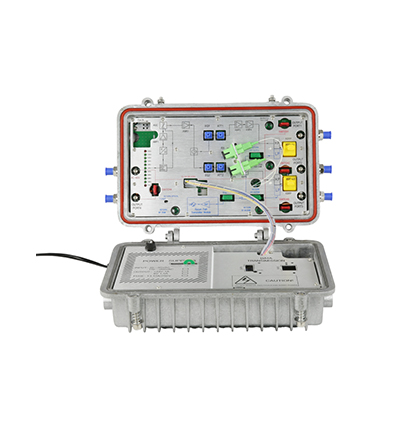

BC21OR02 Spec

The BC21OR02 series outdoor FTTH optical receiver is an outdoor 4 outputs waterproofing receiver. It is mainly used in the building with concentratedusers and high level multi-outputs distribution network.

      •   Optical wavelength: 1100 - 1600 nm

      •   Frequency range: 45 - 862 MHz

      •   Flatness: ±0.75 dB

      •   Impedance: 75 Ω MHz

      •   Rated output level: ≥ 108 dBuV (8-2dBm)

      •   Output return loss: ≥14 dB

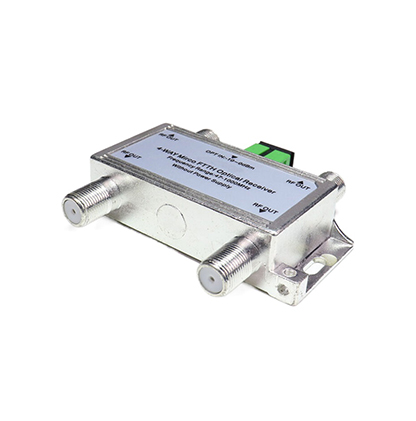

BC21R13 Spec

The BC21R13 series FTTH optical passive receiver node is CATV converter for digital television. This machine adopts the high sensitivity optical receiving tube,without power supply,no power consumption.

      •   Wavelength: 1310-1550 nm

      •   Input optical powe: -12 ~ 0 dBm

      •   Output Impedance: > 75 Ω

      •   Reflectional loss: >45 dB

      •   Range of frequencies: 47-1000 MHz

      •   Inner flatness of band: ±1.5dB
