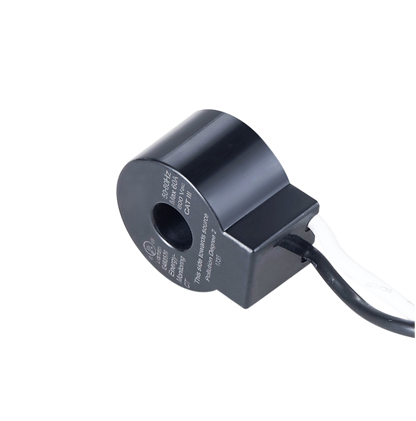

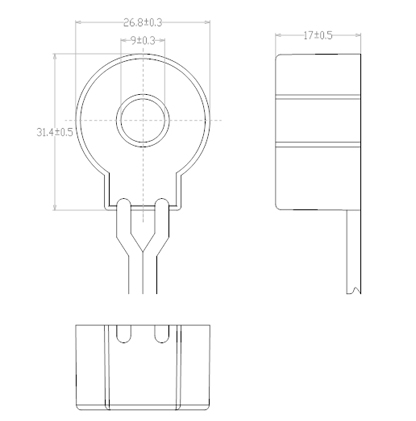

BCOL09 Spec

The BCOL09 Series are UL listed to UL 2808 (XOBA) high-precision current transformers. The CT is Small size and low cost.

      •   Rated Amp: 0-60A

      •   Frequency: 50-60Hz

      •   Accuracy: 0.1%, 0.2%, 0.5%, 1%

      •   UL2808 & UL61010-1

      •   Custom design turns-ratio available

      •   Output can be customized by customer

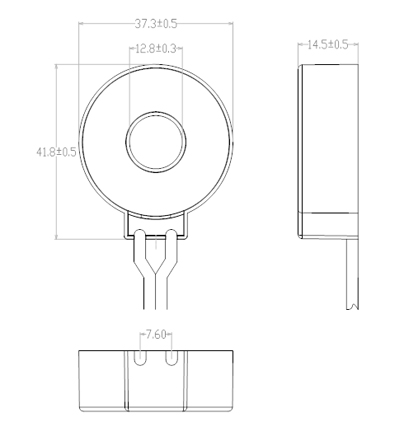

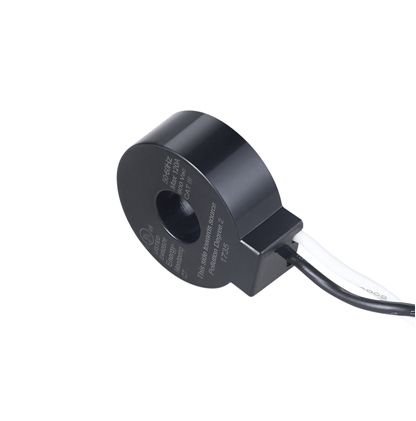

BCOL13 Spec

The BCOL13 Series are UL listed to UL 2808 (XOBA) high-precision current transformers. The CT is Small size and low cost.

      •   Rated Amp: 0-100A

      •   Frequency: 50-60Hz

      •   Accuracy: 0.1%, 0.2%, 0.5%, 1%

      •   UL2808 & UL61010-1

      •   Custom design turns-ratio available

      •   Output can be customized by customer

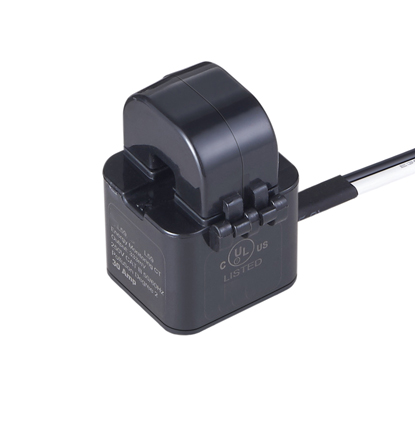

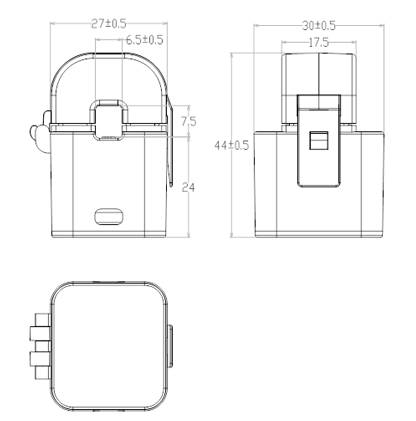

BCSL06 Spec

The BCSL06 Series are UL listed to UL 2808 (XOBA) split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.

      •   Rated Amp: 0-60A

      •   Frequency: 50-60Hz

      •   Accuracy: 0.5%, 1%

      •   UL2808 & UL61010-1

      •   Output can be customized by customer

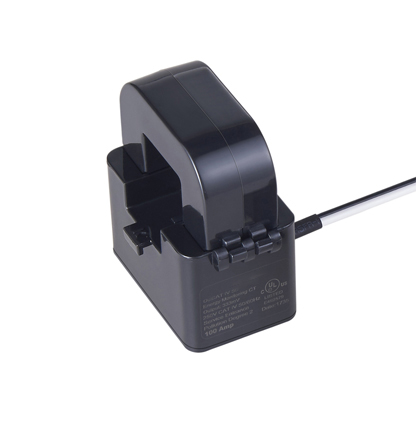

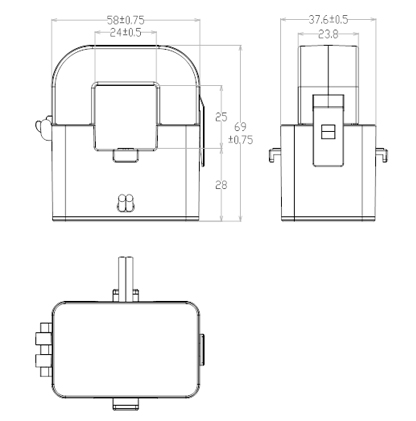

BCSL24 Spec

The BCSL24 Series are UL listed to UL 2808 (XOBA) split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.

      •   Rated Amp: 0-400A

      •   Frequency: 50-60Hz

      •   Accuracy: 0.5%, 1%

      •   UL2808 & UL61010-1

      •   Custom design turns-ratio available

      •   Output can be customized by customer
