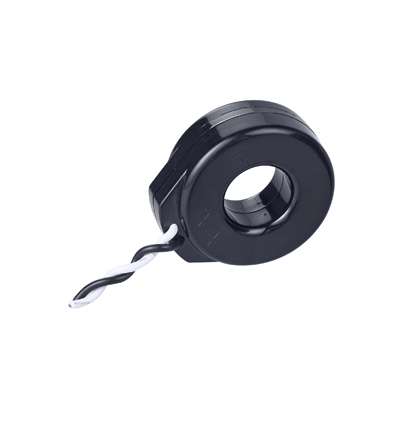

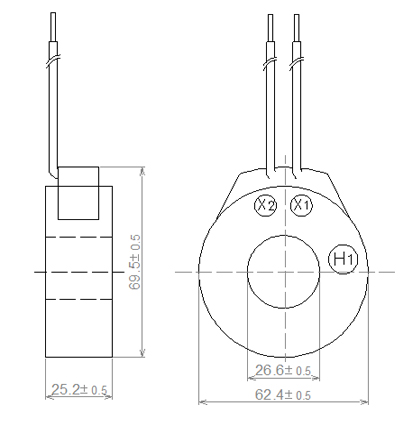

BCO26 Spec
The BCO26 Series are UL listed to UL2808 (XOBA) mini-precision current transformers. The CT is high performance.
• Rated Amp: 0-400A
• Frequency: 50-60Hz
• Accuracy: 0.1%, 0.2%, 0.5%, 1%
• UL2808 & UL61010-1
• Output can be customized by customer
DOWNLOAD DATASHEET

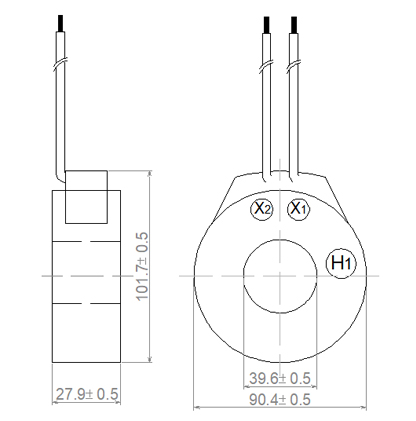

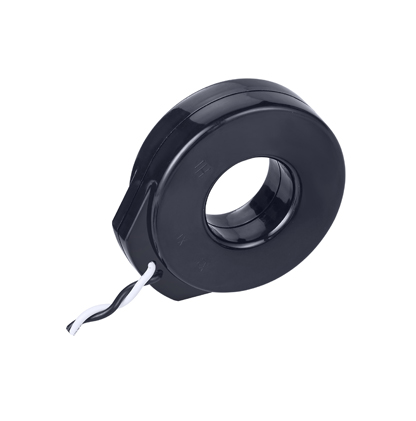

BCO40 Spec
The BCO40 Series are UL listed to UL2808 (XOBA) mini-precision current transformers. The CT is high performance.
• Rated Amp: 0-800A
• Frequency: 50-60Hz
• Accuracy: 0.5%, 1%
• UL2808 & UL61010-1
• Custom design turns-ratio available
• Output can be customized by customer
DOWNLOAD DATASHEET

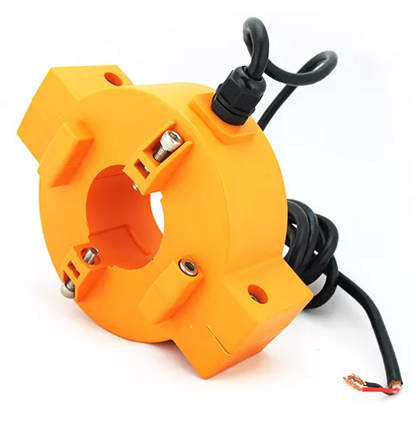

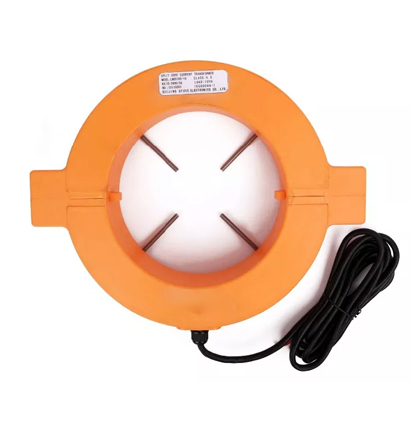

BCS55/185 Spec
The BCS55/185 Series are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection.
• Rated Amp: 100-1500A
• Frequency: 50-60Hz
• Accuracy: 0.5%, 1%, 3%
• IEC60044-1; IEC 61869-2; ANSI C57.13
• IP65 Outdoor Split Core Current transformer
• Output can be customized by customer
DOWNLOAD DATASHEET

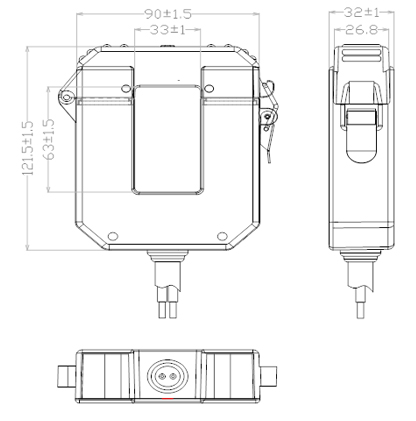

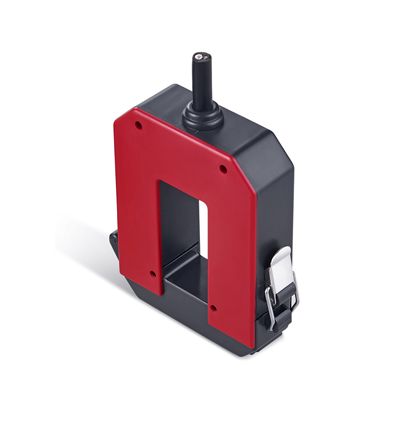

BCS60 Spec
The BCS60 Series are outdoor split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.
• Rated Amp: 0-600A
• Frequency: 50-60Hz
• Accuracy: 0.5%, 1%
• ANSI C57.13 & IEC61869-2
• Custom design turns-ratio available
• Output can be customized by customer
DOWNLOAD DATASHEET
