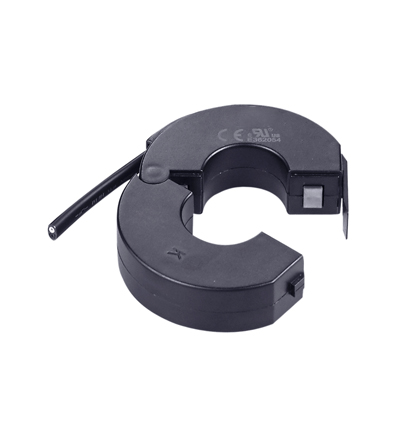

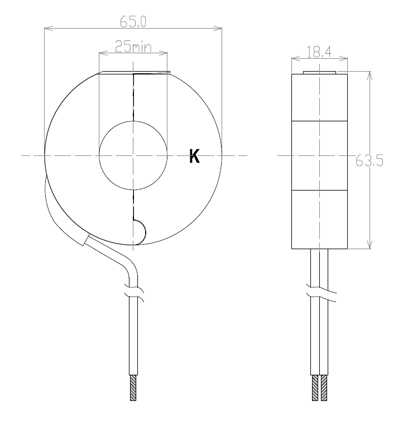

BCS25 Spec
The BCS55/185 Series are split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.
• Rated Amp: 0-400A
• Frequency: 50-60Hz
• Accuracy: 0.5%, 1%
• ANSI C57.13; IEC61869-2; UL Recognized
• Output can be customized by customer
DOWNLOAD DATASHEET

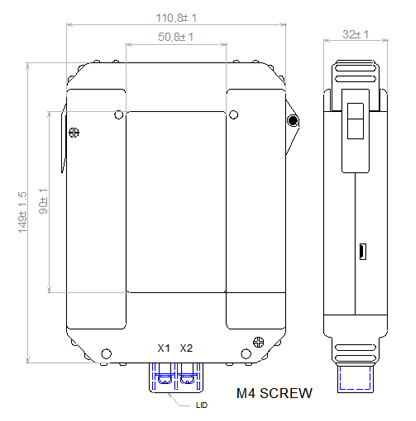

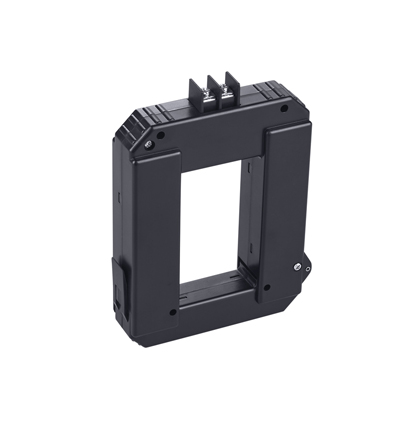

BCS90 Spec
The BCS90 Series are outdoor split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.
• Rated Amp: 5-1200A
• Frequency: 50-60Hz
• Accuracy: 0.5%, 1%
• ANSI C57.13; IEC61869-2; UL Recognized
• Output can be customized by customer
DOWNLOAD DATASHEET

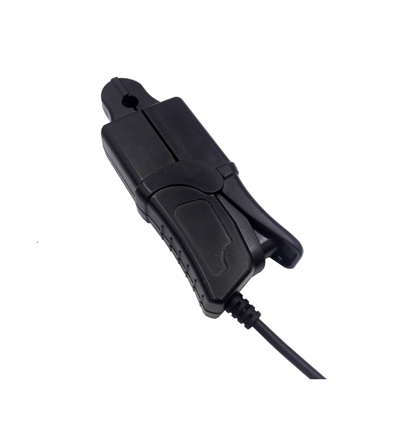

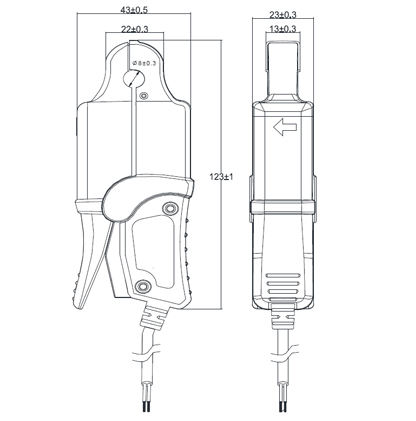

BCS08C Spec
The BCS08C Series are clamp-on current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.
• Rated Amp: 0-10A
• Frequency: 50-60Hz
• Accuracy: 0.2%, 0.5%
• ANSI C57.13; IEC61869-2
• Output can be customized by customer
DOWNLOAD DATASHEET

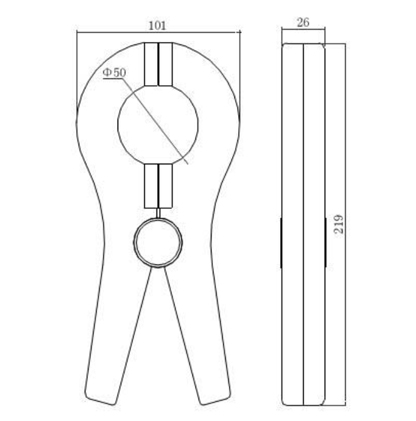

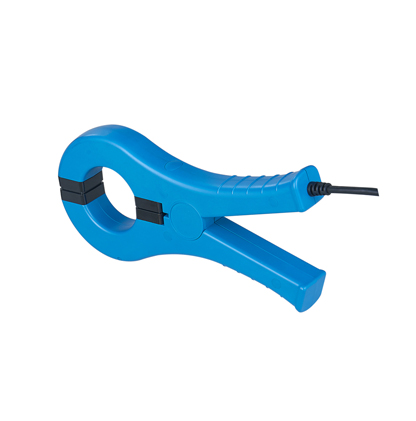

BCS50C Spec
The BCS50C Series are clamp-on current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.
• Rated Amp: 0-1000A
• Frequency: 50-60Hz
• Accuracy: 0.5%, 1%
• ANSI C57.13; IEC61869-2
• Output can be customized by customer
DOWNLOAD DATASHEET
