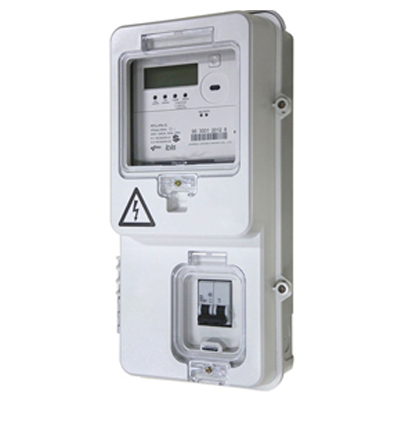

BPMB1301 Spec
The BPMB1301 series meter box is especially designed for smart single phase meter and smart three phase meter at the same time with MCB(Micro Circuit Breaker) as optional.
• Dimensions (mm): 400x210x121 (Customizable)
• Maximum operating temperature: 85℃
• Water absorption: ≤ 0.1%
• Ingress protectio: IP54
• Flammability: UL94-V0
• It can be customized by customer
DOWNLOAD DATASHEET

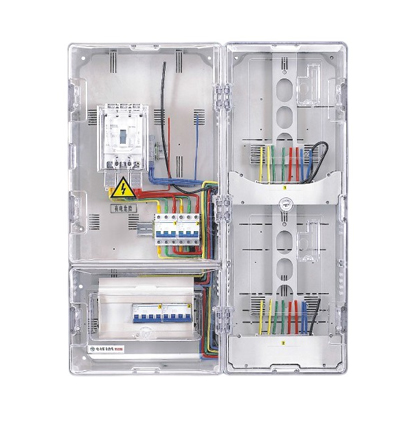

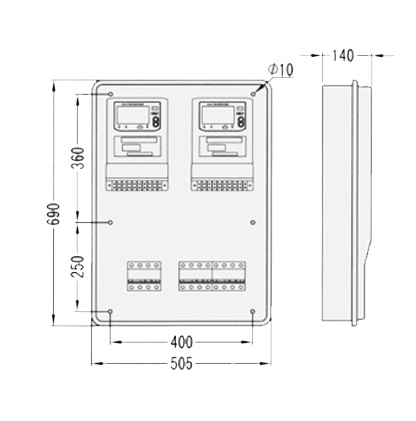

BPMB0302 Spec
The BPMB0302 series meter box is especially designed for smart three phase meter(2 position) at the same time with MCB(Micro Circuit Breaker) as optional.
• Dimensions (mm): 690x505x140 (Customizable)
• Maximum operating temperature: 85℃
• Water absorption: ≤ 0.1%
• Ingress protectio: IP54
• Flammability: UL94-V0
• It can be customized by customer
DOWNLOAD DATASHEET

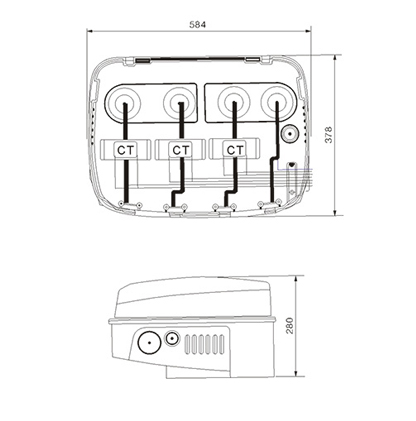

BMDB0301 Spec
The BMDB0301 Series three phase multi-function power meter box is application for transformer low voltage metering and other three phase distribution metering requirement.
• Dimensions (mm): 584x378x280 (Customizable)
• Maximum operating temperature: 85℃
• Water absorption: ≤ 0.1%
• Ingress protectio: IP54
• Flammability: UL94-V0
• It can be customized by customer
DOWNLOAD DATASHEET

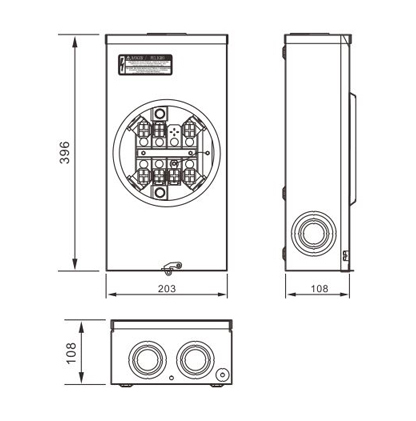

BPMBR0301 Spec
Bestop's line of single position, self-contained meter sockets house the utilities electrical watt-hour meters in residential and commercial buildings.
• Dimensions (mm): 396x203x108 (Customizable)
• Rated Voltage: 600V
• Rated Current: 20A
• Material: Steel
• Number of jaws: 13
• It can be customized by customer
DOWNLOAD DATASHEET
