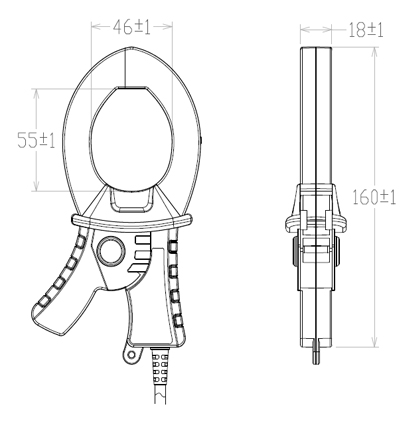

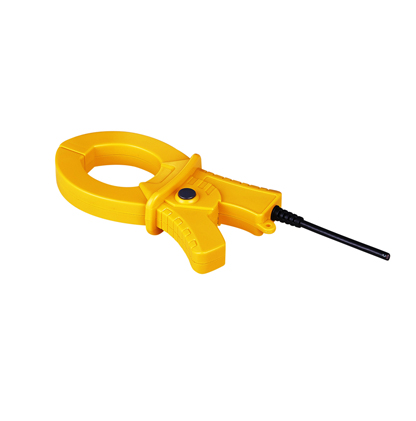

BCS55C Spec
The BCS55C Series are clamp-on current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.
• Rated Amp: 0-500A
• Frequency: 50-60Hz
• Accuracy: 0.5%, 1%
• ANSI C57.13; IEC61869-2
• Output can be customized by customer
DOWNLOAD DATASHEET

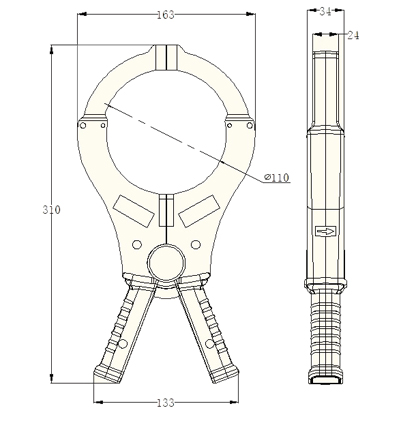

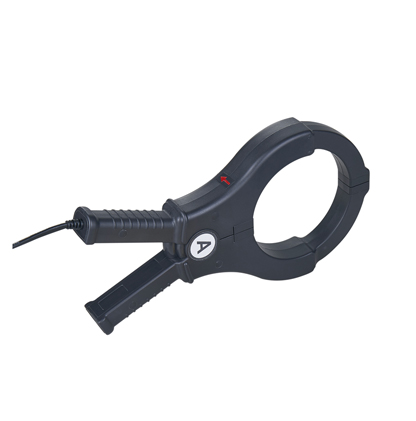

BCS110C Spec
The BCS110C Series are clamp-on current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage.
• Rated Amp: 0-1000A
• Frequency: 50-60Hz
• Accuracy: 0.5%, 1%
• ANSI C57.13; IEC61869-2
• Output can be customized by customer
DOWNLOAD DATASHEET

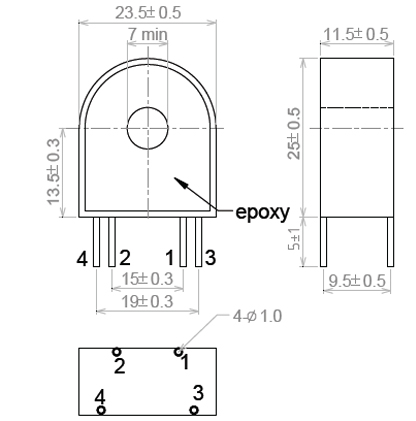

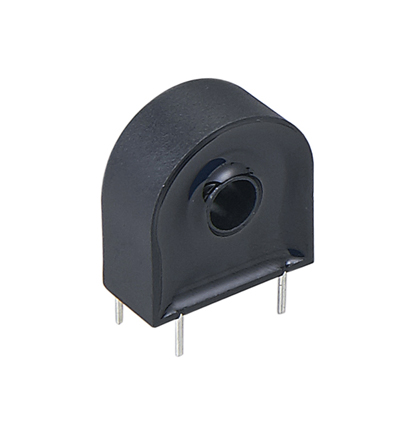

BCU07 Spec
The BCU07 Series are are mini-precision current transformers. The CT is Small size, PCB mounting and low cost.
• Rated Amp: 0-60A
• Frequency: 50-60Hz
• Accuracy: 0.1%, 0.2%, 0.5%
• ANSI C57.13; IEC61869-2; UL Recognized
• Output can be customized by customer

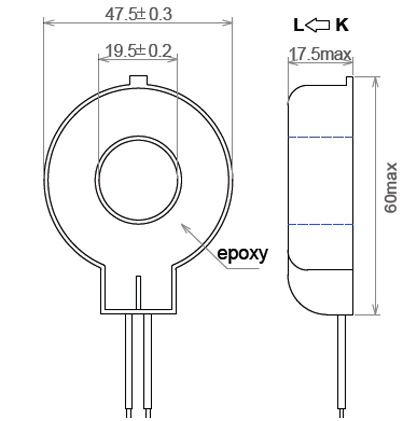

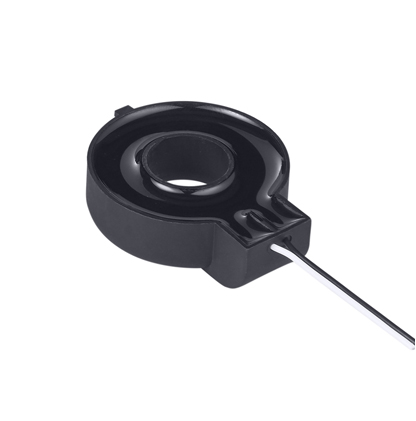

BCO20 Spec
The BCO20 Series are are mini-precision current transformers. The CT is small size and low cost.
• Rated Amp: 0-300A
• Frequency: 50-60Hz
• Accuracy: 0.2%, 0.5%, 1%
• ANSI C57.13; IEC61869-2; UL Recognized
• Output can be customized by customer
