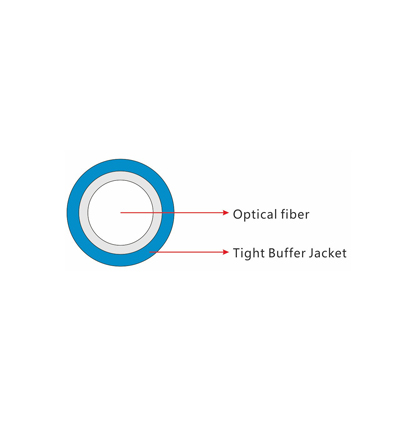

BC25GJFJV Spec

The BC25GJFJV Series 300μm tight buffered fiber optical cable is made of Hytrel-7246 grade material, with a layer of Hytrel material extruded from a 200 / 250μm fiber to provide the ideal choice for high-density fiber optic cable.

      •   Without shrinkage and deformation

      •   Provides excellent performance and flexability

      •   Chemical resistance

      •   Weatherability and aging resistance

      •   Tight buffered color: Translucent/12 colors

      •   Tight buffer material: Dupont Hytrel-7246

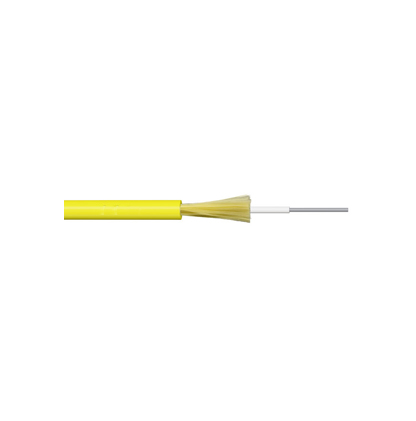

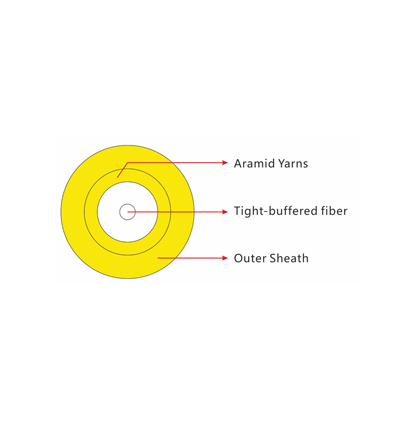

BC25GJFJV-SX Spec

The BC25GJFJV-SX Series indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

      •   Good performance of flame-retardant

      •   Steady performance in high and low temperature

      •   Attenuation: ≤1.0dB/km @1300nm

      •   Tensile strength: 150N

      •   Operating temperature: -20 ~ 60℃

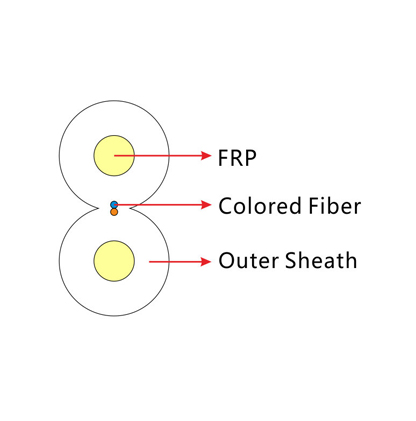

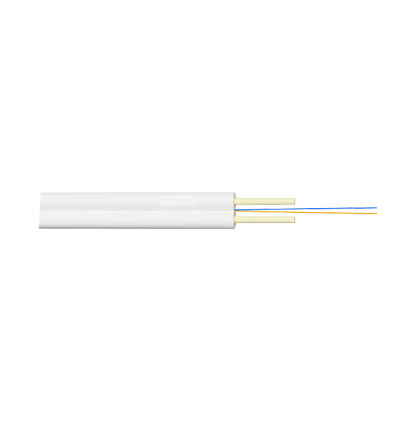

BC25GJXFH(V)FRP Spec

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP/KFRP) are placed at the two sides. Then the cable is completed with a black or colored LSZH sheath.

      •   Simple structure, light weight, high practicability

      •   Novel flute design, easily strip and splice

      •   Low smoke, zero halogen, flame retardant sheath

      •   Cable cut-off wavelength: ≤1260nm

      •   Operating Temperature : -20 ~ 60℃

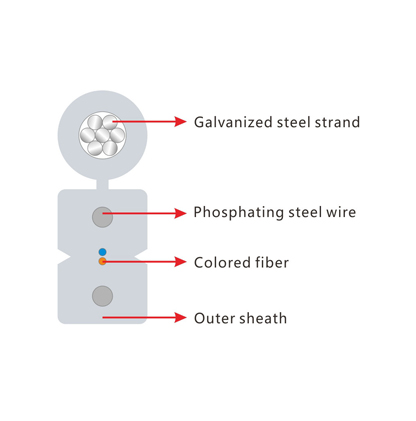

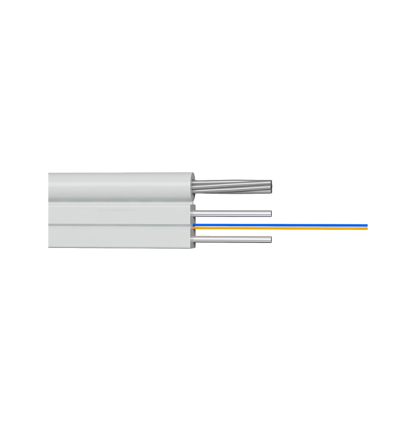

BC25GJYXFCH(V) Spec

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (STEEL) are placed at the two sides. A steel wire as the additional strength member is also applied.

      •   Simple structure, light weight, high practicability

      •   Novel flute design, easily strip and splice

      •   Low smoke, zero halogen, flame retardant sheath

      •   Cable cut-off wavelength: ≤1260nm

      •   Operating Temperature : -20 ~ 60℃

      •   Good performance of crush resistance
